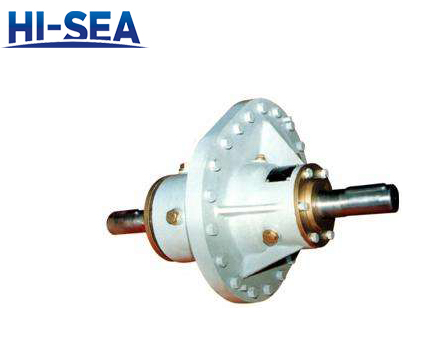

Bulkhead Gear


Bulkhead Gear

Bulkhead Gear



Application

The device is satisfy with ship requirements. It is suitable for transmission of power between airtight cabins of small and medium vessels. A bulkhead gear is a type of marine propulsion system that is used to transmit power from the engine to the propeller shaft in vessels where the engine is located far from the stern. It consists of a set of gears that are mounted on a bulkhead or other rigid structure within the vessel, and which connect to the propeller shaft via a driveshaft.

Advantages and Features

1. Compact structure, high quality;

2. Excellent performance, high security;

3. Working steadily and smoothly;

4. Easy installation, easy maintenance;

5. Corrosion resistance, long lifespan;

6. Reliable service, exquisite appearance;

7. Can be customized according to your requirements.

Drawing Of Product



Main Technical Parameters
Model L L1 L2 D D1 D2 D3 D4 H H1
GCD-30B 370 193 58 300 260 220 160 30 16 18
GCD-40B 424 212 82 300 260 220 160 40 16 18
GCD-50B 460 230 82 320 280 240 190 50 20 22
GCD-60B 510 255 107 320 280 240 190 60 20 22
GCD-70B 538 269 107 360 300 260 220 70 25 27
GCD-80B 590 292 132 360 210 260 220 80 25 24
GCD-90B 625 313 132 380 330 280 250 90 30 32
GCD-100B 642 315 132 400 350 300 250 100 30 32
Note: The sizes of this table are for reference only. The product can be customized according to customers' request.
Other Images


bulkhead gear
