Bronze GB Marine Valve

Bronze GB  Marine Valve

1. Application

GB T2030-80 Marine Bronze Suction Sea Valve just can be used in sea water, it can be generally used to repaie sips and shipbuilding.

2. Material

(1) body & cover & disc: cast tin bronze

(2) stem: aluminum bronze

The material of this product can be made to order, for example:cast steel, stainless steel 304, stainless steel 316L etc.

3. Main products

1)GB T587 Marine Bronze Stop Valve

2)GB T588 Marine Bronze Stop Check VALVE

3)GB T589 Marine Check Valve

4)GB T593 Marine Bronze Plug Valve

5)GB T595 Marine Bronze Male Thread Stop Valve

6)GB T596 Marine Bronze Male Thread Stop Check Valve

7)GB T597 Marine Bronze Male Thread Check Valve

8)GB T598 Marine Bronze Male Thread Cock

9)GB T599 Marine Bronze Male Thread Draw Cock

10)GB T1951-2008 Marine Bronze Male Threaded Stop Valve

11)GB T1953-1984 Marine Bronze Male Threaded Stop Check

12)GB T2032-93 Marine Flanged Fire Hydrant

13)GB T11692-1989 Bronze suction Sea Valve

14)GB 1952-1980 Marine Bronze Male Threaded

Please click here here if you want to get more detailed information

4. Technical Data

(1) nominal pressure(MPa): 0.4

(2) nominal diameter(mm): 80~400

5. Features

(1) Strict quality control to ensure product quality.

(2) Beautiful shape and good service.

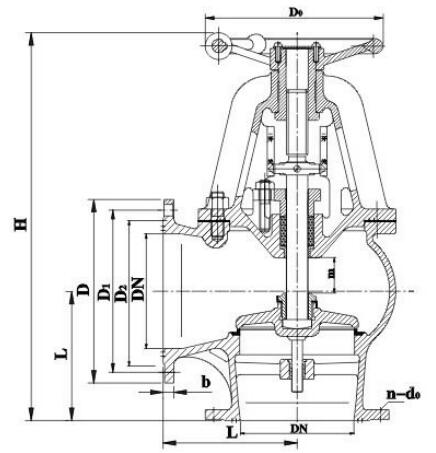

6. Dimensions(mm)

DN

(mm)

Structure dimension

flange

bolt

Hand wheel

D0

Lift range

m

Weight

(kg)

L

H

D

D1

D2

b

d0

n

Th.

80

125

360

170

138

118

14

15

8

M14

160

24

19.0

100

135

415

190

158

138

14

15

8

M14

180

30

23.6

125

160

470

215

183

164

14

15

10

M14

200

40

31.2

150

175

506

240

208

190

14

15

12

M14

225

48

49.8

200

220

595

295

264

247

15

15

12

M14

280

60

70.0

250

260

698

365

327

306

16

17

14

M16

360

70

111.0

300

300

780

430

386

360

19

22

14

M20

400

78

170.3

350

320

910

480

436

410

20

22

16

M20

450

100

229.0

400

380

960

530

486

460

21

22

16

M20

500

110

299.0


7. IACS Certificate: RINA, BV, CCS, DNV, KR, ABS, LR, NK.
