30KN Electric Vertical Capstan - Marine Electric Capstan - Hi-sea

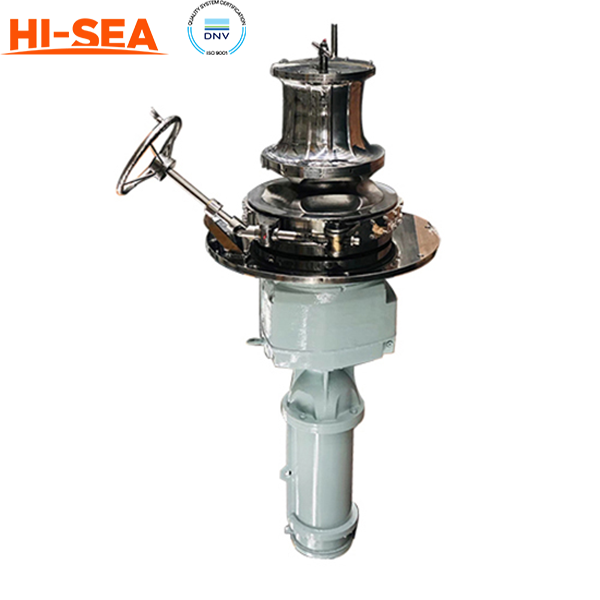

30KN Electric Vertical Capstan


30KN Electric Vertical Capstan


30KN Electric Vertical Capstan



Application

A 30KN electric vertical capstan is a type of capstan that is designed for use on ships and other marine vessels. It is an electrically powered machine that is typically mounted vertically on the deck of the vessel. It is dricen by electric motor and can be delivered with a one, two or three speed electric motor. 30KN electric vertical capstan mainly consists of electric motor, gearbox, capstan head, brake and so on.

Material

Cast steel, 316L stainless steel.

Advantages and Features

1. Compact structure, high strength;

2. Excellent performance, exquisite appearance;

3. Reliable service, high security;

4. Corrosion resistance, long lifespan;

5. Easy installation, easy maintenance;

6. Local control and remote control;

7. Structure: vertical;

8. Can be customized according to your requirements;

9. Approved by LR, RINA...

Drawing of 30KN Electric Vertical Capstan


Technical Parameters

Type Working
Load(KN)
Mooring Speed
(m/min)
Wire Dia.(mm) Motor
Capacity(KW)
30KN 30 ≥18 φ17.5 18.5
