Hot Well Unit
1. Hot Well Unit Application
This series hot well unit module can be used to steam condensate water, boiler water supply system of ships and drilling platforms. The hot well module is the necessary equipment of steam condensate water closed loop circulatory system. The hot well module is compact structure and easy operation, all exterior interface can be set according to cabin-room pipeline request.
Main Products
Marine Hot Well Unit
2. System Working Principle of Hot Well Unit
It is constituted part of steam condensate-water closed loop circulatory system. The surplus steam produced by boiler and condensate- water produced when the steam passing through the steam-using devices, they are cooled when passing through atmosphere condenser, then flow into hot-well, hot-water filtered in hot-well, exhausting the oil and dirty, sending it into boiler by pressure-increasing pump of boiler supply water, supply to continue circulatory in system, accomplishing heat-exchange of the whole system.
3. Hot Well Unit Technical Parameters
The technical parameter is optional, we can accommodate your requirements, please don’t hesitate to contact us!
|
No. |
Type |
Hot well Capacity |
Cooling Area(㎡) |
Outline Dimension |
|
1 |
HWU-0.25/2.0 |
0.25 |
1 |
1050×600×1050 |
|
2 |
HWU-0.5/3.0 |
0.5 |
2 |
1500×700×1250 |
|
3 |
HWU-0.75/5.0 |
0.75 |
3 |
1500×1000×1250 |
|
4 |
HWU-1.0/5.0 |
1 |
5 |
1500×1300×1250 |
|
5 |
HWU-1.0/8.0 |
1 |
8 |
1650×1300×1250 |
|
6 |
HWU-1.2/6.0 |
1.2 |
6 |
1650×1500×1450 |
|
7 |
HWU-1.2/8.0 |
1.2 |
8 |
1650×1500×1450 |
|
8 |
HWU-1.5/8.0 |
1.5 |
8 |
1650×1500×1800 |
|
9 |
HWU-1.5/10 |
1.5 |
10 |
1900×1500×1800 |
|
10 |
HWU-2.0/12 |
2 |
12 |
1800×1600×1800 |
|
11 |
HWU-2.0/15 |
2 |
15 |
2200×1600×1800 |
|
12 |
HWU-2.5/18 |
2.5 |
18 |
2200×1800×1950 |
|
13 |
HWU-2.5/20 |
2.5 |
20 |
2200×1800×1950 |
4. Structure Drawing of Hot Well Unit
The hot well unit module is composed with public base, marine atmosphere condenser, condensate-water observation cabinet, hot-water well, automatic replenish-water valve, thermometer, temperature controller, liquid controller, hot-water pump, valve and etc.

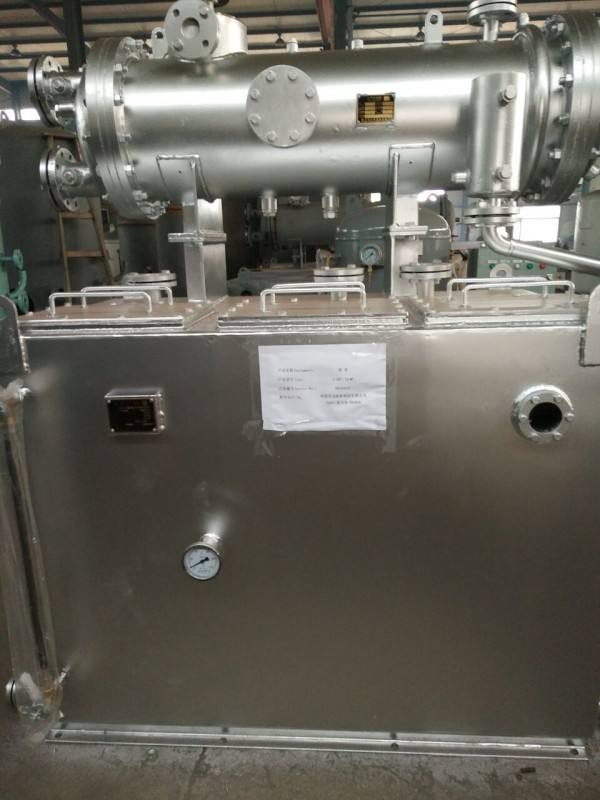

4. Picture of Marine Hot Well Unit
