Marine Suction Inlet
1. Application
Marine Suction Inlet is usually used in oil tank, water tank and sewage well of all kinds of ships, which is suitable for water or oil medium.
2. Material
- flange & body & support: cast iron
- pipe: 10 seamless steel pipes
- clamping screw nail: brass
Your special material requirement can be met, such as cast steel, stainless steel 304, stainless steel 316L etc.
3. Specification
Type B
DN

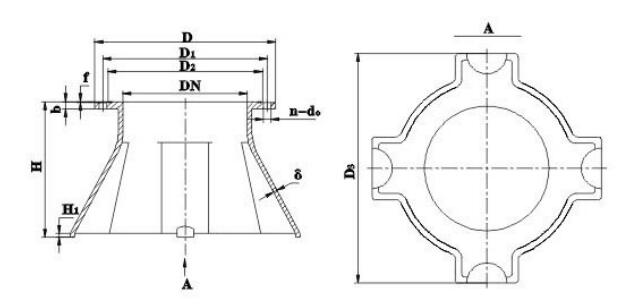

Structure dimension
Flange size
D3
H
H1
D
D1
D2
b
d0
f
80
350
230
15
170
138
118
15
15
1
100
350
250
190
158
138
125
370
260
20
215
183
164
150
390
270
240
208
190
16
200
450
270
30
295
264
247
Type BS
DN
Structure dimension
Flange size
D3
H
H1
D
D1
D2
b
d0
f
80
350
230
15
190
150
128
18
18
3
100
350
250
210
170
148
125
370
260
20
240
200
178
20
150
390
270
265
225
202
200
450
270
30
320
280
258
22
