Depth Sounding Injection head
1. Application
Depth Sounding Injection head is also called brass plug, sounding head, sounding pipe head. There are type A, type B and Type C. Type A is the inject head for steel deck, Type B is the inject head for wood deck, Type C is the lift inject head. It is suitable for sounding device of oil tank and water tank for all kinds of ships and offshore drilling platforms.
2. Material
- Body: Cast Steel
- Cover: Brass
- Gasket: NBR
- Welded Plate: WCB
3. Features
- medium: water
- nominal diameter: DN40~DN150
- standard: CB/T3778-1999

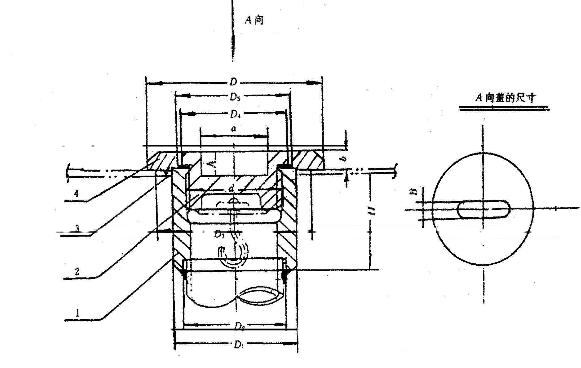

4. Specification
|
DN |
H |
D1 |
D2 |
D5 |
D3 |
D4 |
a |
B |
h |
d |
D |
D6 |
b |
Weight(kgs) |
|
40 |
60 |
73 |
50 |
59 |
65 |
57 |
34 |
6 |
10 |
M45*3 |
80 |
50 |
6 |
0.90 |
|
50 |
65 |
92 |
62 |
78 |
75 |
76 |
34 |
6 |
10 |
M60*3 |
92 |
62 |
6 |
1.10 |
|
65 |
70 |
108 |
82 |
94 |
90 |
92 |
34 |
6 |
10 |
M76*3 |
112 |
82 |
6 |
1.62 |
|
80 |
75 |
122 |
93 |
108 |
105 |
106 |
55 |
10 |
14 |
M90*3 |
123 |
93 |
10 |
2.41 |
|
100 |
80 |
142 |
118 |
128 |
130 |
126 |
55 |
10 |
14 |
M115*3 |
148 |
118 |
10 |
4.02 |
|
150 |
100 |
198 |
172 |
180 |
185 |
178 |
55 |
10 |
14 |
M165*3 |
202 |
172 |
10 |
9.18 |
