Control Throttle Orifice Plate
1. Application
Control Throttle Orifice Plate adopts the new technology of advanced computer technology and micro power consumption, strong function, compact structure, simple operation. It is the differential pressure generating device for measuring flow, which can be used to measure the flow of various fluids in the pipe with various differential pressure gauges or differential pressure transmitters.
2. Material
- flange: Q235A
- pipe spacer: Q235A
- throttle disc: Q235A
- regulating rod: 20# chroming
3. Features
- nominal diameter: DN25~DN250
- The structure of throttling device is easy to copy, simple and firm, reliable performance, long term and low price.

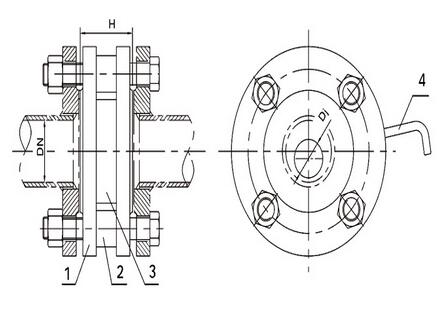

4. Specification
DN Diameter of pipeline
25
32
40
50
65
80
100
125
150
200
250
H
50
56
56
58
62
64
64
70
70
76
82
Dj
16
20
25
26
34
41
53
65
78
102
128
—
—
—
35
42
50
70
85
100
140
180
Diameter of throttle orifice
