CBZ-35A Marine Fan

CBZ-35A Marine Fan

1.Characteristics:

Explosion-proof, safe and reliable in operation.

Well anti-corrosive.

Strongly capable of resisting vacillation, vibration and shocking.

2. Applications:

CBZ Series Marine Explosion-proof Axial Flow Fan From Manufacture can be delivered for gas mixtures or vapour containing combustibles and explosives, for ordinary air, for sea air containing salt fog, for air containing oil fog and other corrupt air supply or extraction.

3. Main Property Parameters and Dimensions:

Type	Flow rate m³/h	Total pressure Pa	Static pressure Pa	Speed r/min	Motor			Dimensions										Weight ≈㎏
					Freq Hz	Power Kw	Type	D	D₁	D₂	D₃	H₁	H₂	H₃	L	T	n*d	Ⅰ	Ⅱ
CBZ-35A	3000	360	320	2920	50	1.1	YB802-2	Ø350	Ø395	Ø425	Ø700	220	445	660	450	10	8*12	92	86
	4500	240	140
	3600	520	460	3500	60	1.5	YB90S-2H
	5400	340	200

4. Outline Drawing:

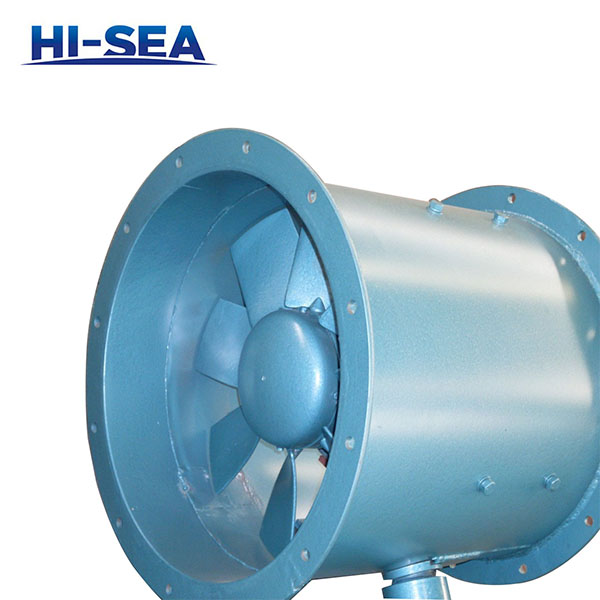

5. Product Showing:
