Short Bow Lugs


Short Bow Lugs

Description

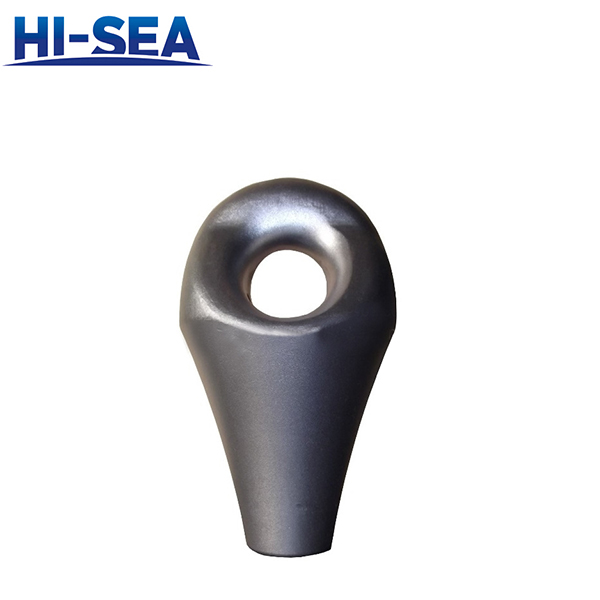

The outlook of short bow lugs is similar with short bow sockets.

But the biggest different point is that the center hole of short bow lugs is smaller and the bottom connection is more chubby than short bow sockets. Similarly, it is cast by lead alloy and can be connected with the wire rope well.

Detail:

Material: high strength steel

Surface: painting black(as requirements)

Technology: Casting

Shape: Pear-shaped

Usage: Wire rope fitting

Recommend rope diameter:10 mm-56 mm(as requirements)

Superiority

Variety of options

Anti-corrosion and durable

Better fixedness

Specification:

Drawing/sheet of short bow lugs


Rope dia.(mm)

Dimensions (mm)

A

B

c

D

E

F

G

H

I

10-11

69

48

22

195

12

12

20

24

12

12-13

79

56

25

195

15

14

22

25

14

14-15

91

64

28

220

17

16

24

29

16

16-17

103

70

31

220

19

18

26

31

18

18-19

114

84

33

245

21

19

3o

38

20

20-21

129

84

33

310

23

21

33

42

22

22-24

140

100

40

310

26

23

37

44

26

25-27

158

100

43

350

28

25

39

48

29

28-30

171

120

45

350

31

27

40

56

31

31-33

190

120

52

445

32

29

45

58

35

34-36

203

142

55

445

36

31

50

64

37

37-39

225

142

60

495

39

35

51

68

40

40-42

242

166

63

555

43

37

59

70

43

43-45

265

166

68

595

47

41

62

72

47

46-48

286

166

75

595

49

43

66

80

51

56

340

220

84

880

60

54

75

90

59
