Rudder Stock Sealing Apparatus

Application

A rudder stock sealing apparatus is a system used in marine vessels to prevent water from entering the hull through the rudder stock opening. The apparatus typically consists of a series of seals and gaskets that are installed around the rudder stock and designed to prevent water from entering the hull while allowing the rudder to rotate freely. The primary function of the rudder stock sealing apparatus is to maintain a watertight seal around the rudder stock, preventing water from entering the hull and causing damage to the vessel. This is especially important during heavy seas or inclement weather when water can enter the vessel through any openings in the hull. The rudder stock sealing apparatus is compact in structure and easy to be maintained. It is suitable when the axial size is small. And the product can be customized to customers' requests.

Advantages and Features

1. Compact structure, high quality;

2. Excellent performance, high security;

3. Working steadily and smoothly;

4. Easy installation, easy maintenance;

5. Corrosion resistance, long lifespan;

6. Reliable service, exquisite appearance;

7. Can be customized according to your requirements.

Technical Parameter

Specification	A	B	C	E	H	T	e	Weight（kg）
130	101-130	250	225	6-M12×35	50	10	2-M8×20	9
160	131-160	280	255	6-M12×35	50	10	2-M8×20	11
190	161-190	310	285	6-M12×40	52	10	2-M8×20	12
220	191-220	358	324	6-M12×40	52	10	2-M10×25	16
260	221-260	404	370	6-M12×40	55	10	2-M10×25	19
300	261-300	444	410	6-M12×40	55	10	2-M10×25	20

Specification	A	B	C	E	H	T	e	Weight（kg）
80	65/70/75/80	200	170	4-M10×45	56	10	4-M10×25	13
100	85/90/95/100	220	190	4-M10×45	56	10	4-M10×25	15

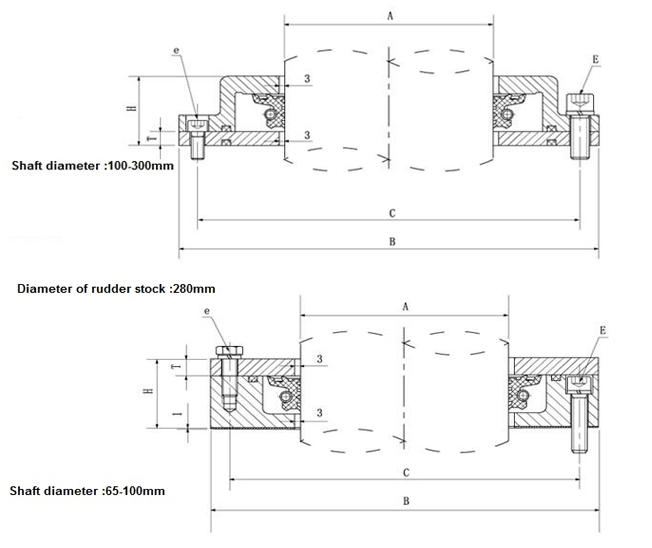

Drawing of Rudder Stock Sealing Apparatus
