CBL-37 Marine Fan

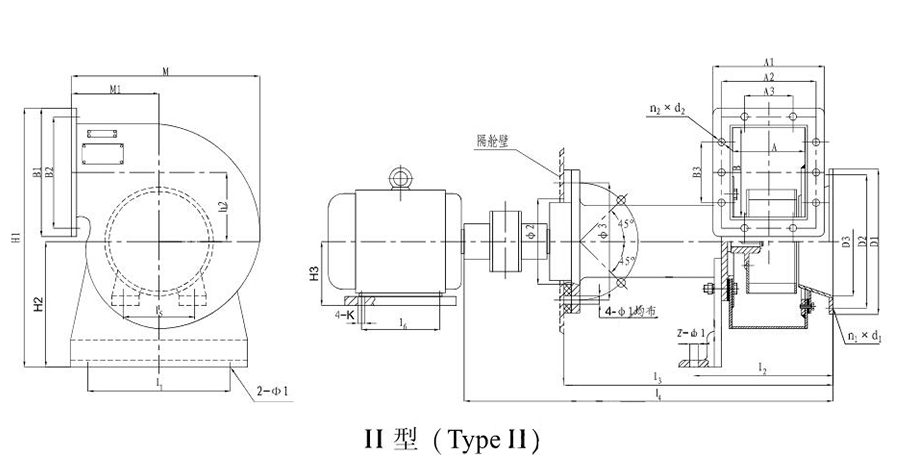

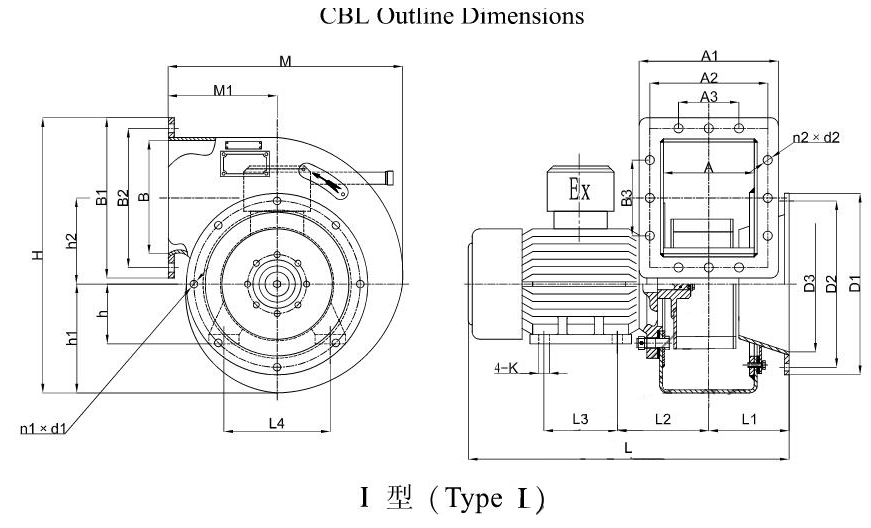

1. Installation Type for Centrifugal Fan:
The fan is horizontal type, motor is direct coupling. If necessary, it can also be constructed into a vertical type.
The fan can be made of clockwise(right) or counter clockwise(left) rotation.
Right rotation-----viewed from the motor side, the impeller rotates clockwise and indicated as “R”.
Left rotation-------viewed from the motor side, the impeller rotates counter clockwise and indicated as “L”.
2. Main Property Parameters and Dimensions:
|
Type |
Flow rate m³/h |
Total pressure Pa |
Static pressure Pa |
Speed r/min |
Motor |
||||
|
Freq Hz |
Power Kw |
Type |
|||||||
|
Type I |
Type II |
Type I |
Type II |
||||||
|
CBL-37 |
6000 |
1010 |
830 |
1460 |
50 |
4 |
4 |
YB112M-4H |
YB112M-4H Y112M-4H |
|
7200 |
990 |
735 |
|||||||
|
7200 |
1450 |
1195 |
1750 |
60 |
5.5 |
5.5 |
YB132S-4H |
YB132S-4H Y132S-4H |
|
|
8600 |
1420 |
1060 |
|||||||
|
Type |
Type of the motor |
A |
A1 |
A2 |
A3 |
B |
B1 |
B2 |
B3 |
D1 |
D2 |
D3 |
n₁*d₁ |
n₂*d₂ |
H |
h |
h₁ |
h₂ |
|
|
Type I |
Type II |
||||||||||||||||||
|
CBL-37 |
YB112M-4H |
YB112M-4H Y112M-4H |
270 |
346 |
315 |
210 |
360 |
434 |
400 |
270 |
Ø454 |
Ø420 |
Ø380 |
12*Ø12 |
12*Ø12 |
751 |
112 |
300 |
234 |
|
YB132S-4H |
YB132S-4H Y132S-4H |
132 |
|||||||||||||||||
|
M |
M1 |
L |
L1 |
L2 |
L3 |
L4 |
K |
H1 |
H2 |
H3 |
Ø1 |
Ø2 |
Ø3 |
I1 |
I2 |
I3 |
I4 |
I5 |
I6 |
Weight ≈㎏ |
||
|
Type I |
Type II |
Type I |
Type II |
|||||||||||||||||||
|
650 |
292 |
724 |
185 |
209 |
140 |
190 |
Ø12 |
Ø12 |
801 |
350 |
112 |
Ø15 |
Ø190 |
Ø215 |
300 |
367 |
598 |
773.5 |
190 |
140 |
108 |
131 |
|
754 |
228 |
140 |
216 |
Ø12 |
Ø12 |
901 |
430 |
132 |
Ø15 |
Ø240 |
Ø265 |
400 |
371 |
638 |
856 |
216 |
140 |
130 |
163 |
|||
