20.5 mm Electric Double Gypsy Anchor Windlass
Application
20.5 mm Electric Double Gypsy Anchor Windlass is one of the most important deck machinery. It is driven by electric motor and used for engaging and lowering the anchors with chain. The closed gearbox makes 20.5 mm Electric Double Gypsy Anchor Windlass safer to run. It is equipped with manual brake and clutch.
Material
Cast steel, 316L stainless steel.
Advantages and Features
1. Contract structure, high strength;
2. Local control and remote control;
3. Easy installation, low maintenance;
4. Corrosion resistance, long lifespan;
5. Excellent operation, exquisite appearance;
6. Certificate: IRS, RINA, LR...
7. Reliable service, high security;
8. Can be customized according to your requirements.

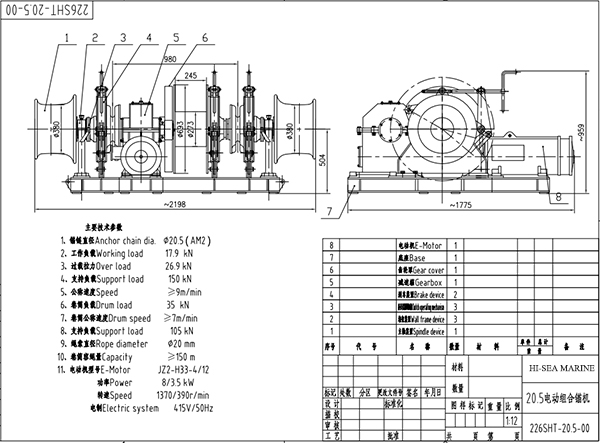

Drawing of 20.5 mm Electric Double Gypsy Anchor Windlass
Main Specifcation
Specifications
Chain diameter(AM2)
20.5mm
Working load
17.9KN
Overload
26.9KN
Support load
150KN
Speed
≥9m/min
Drum load
35KN
Drum speed
≥7m/min
Support load
105KN
Cable diameter
20mm
Capacity
≥150m
Power
8/3.5KW
Speed
1370/390r/min
Voltage
415v / 50Hz
Finished Image of 20.5 mm Electric Double Gypsy Anchor Windlass
Delivery Picture of 20.5 mm Electric Double Gypsy Anchor Windlass
