Solar Marine Navigation Light
The Scope of Application：
Applicable to marine buoys, inland buoys, shore markings, fixed lamp piles and derrick signal lights in offshore oil fields.
Product Characteristic:
Available in blue, red, amber white and
green
Completely self-contained and watertight, designed to operate reliably in harshest of environmental and work conditions
The lights are available in a range of high visibility colours In Accordance with IALA Maritime Buoyage System. All Lanterns may be set to any of the 256 IALA recommended flash settings which are user-adjustable onsite without the need for external devices.
Product Authentication:
Approved by IALA
Product Specification:
|
Model |
NFS703MC |
NFS503P |
|
|
Light output |
Flashing |
Flashing
|
|
|
Peak Intensity (360°average) Adjustable |
White |
＞500cd |
＞45cd |
|
Red |
＞400cd |
＞42cd |
|
|
Amber |
＞380cd |
＞37cd |
|
|
Green |
＞430cd |
＞39cd |
|
|
Blue |
＞390cd |
＞26cd |
|
|
Visibility |
7NM-10NM |
4-5NM |
|
|
Horizontal Output |
360° |
360° |
|
|
Vertical Divergence |
±7.5° at 50% intensity |
±7.5° at 50% intensity |
|
|
Minimum Autonomy |
more than 200Hours |
200Hours |
|
|
Latitude Range |
55°S to 55°N |
35°S to 35°N |
|
|
On/Off Level |
60/100 Lux |
35°S to 35°N |
|
|
Lifespan of LEDS |
up to 100,000 Hours |
up to 100,000 Hours |
|
|
Type |
7.2W mono-crystalline with 16%efficiency |
2.7W mono-crystalline with 16%efficiency |
|
|
Storage battery |
7.2V 16AHLithium battery , replaceable |
4.8V5AH Ni-MH battery , replaceable |
|
|
Lens material |
Polycarbonate |
Polycarbonate |
|
|
Colored Lens Option |
Red, green, blue, amber, or white |
Red, green, blue, amber, or white |
|
|
Mounting Option |
4 bolts or Magnetic base |
4bolts or Magnetic base |
|
|
Weight |
3.4kg |
1.2kg |
|
|
Temperature Range |
-40℃ to +80℃ |
-40℃ to +80℃ |
|
|
Waterproof |
IP67 |
IP68 |
|

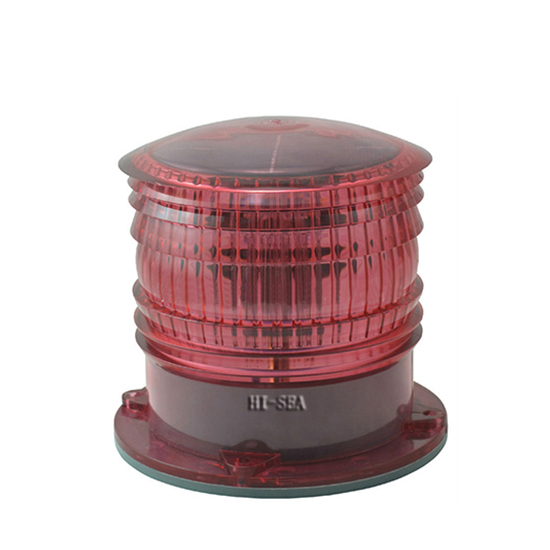

Photo Two of Solar Marine Navigation Light:
