Carbon Fiber Composite Air Cylinder
Description:
People in place where production rescue, petrochemical production, medical and epidemic prevention, underground pipelines, has a large amount of toxic gases, dust, steam, viruses and so on will be generated during production. It will prolong exposure will cause respiratory, lung, blood and other problems.
Carbon fiber composite air cylinders configuration is designed with a four-layer composite structure: the first layer - aluminum alloy inner tank; the second layer - carbon fiber; the third layer - glass fiber; the fourth layer - epoxy resin layer. Layers of protection of storage gas from leakage, stable and reliable quality of feeding.
Carbon fiber composite air cylinders are light in weight, high in strength, corrosion-resistant, safe and reliable, stronger than steel gas cylinders (won't explode), with higher burst pressure, and have the characteristics of leaking air before explosion, long inspection period, and good performance in firefighting, etc. field that only carbon fiber bottles can be used.
Certificate：CCC, CCS, etc.
Standards：Resolution MSC339(91) Amendments to the international code for fire safety systems (FSSCODE).
Superiority:
Bright and good air tightness
Small volume and light weight
Stable performance
Selected high-quality high-pressure safety valve
Specification: (Customers need to provide the original factory parameter when buying respirator accessories)
Working pressure: 30Mpa
Volume: 6.8L、9L、6.8x2L
Air Deposit: 2040L、2700L、2040x2L
Using Time:50-60、80-90、100-120(min)
Alarm Pressure: 4-6Mpa
Weight:<12、<16、<17
Packing: 710x290x430mm
Notes: Carbon fiber composite air cylinder, double-cylinder breathing apparatus

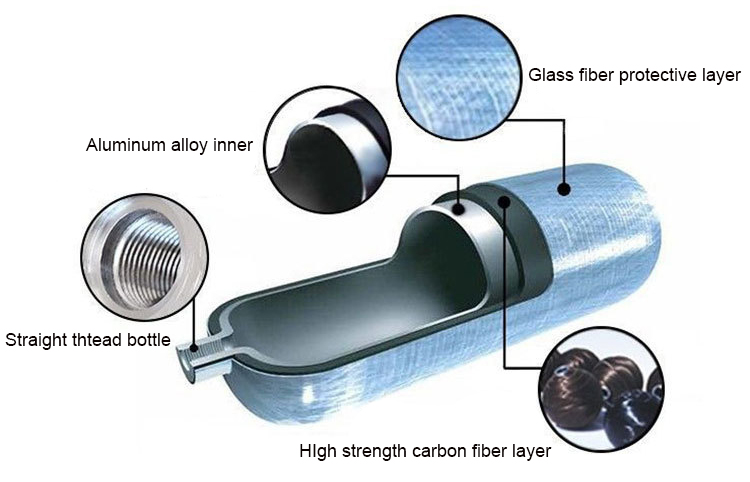

Detail of carbon fiber composite air cylinder:

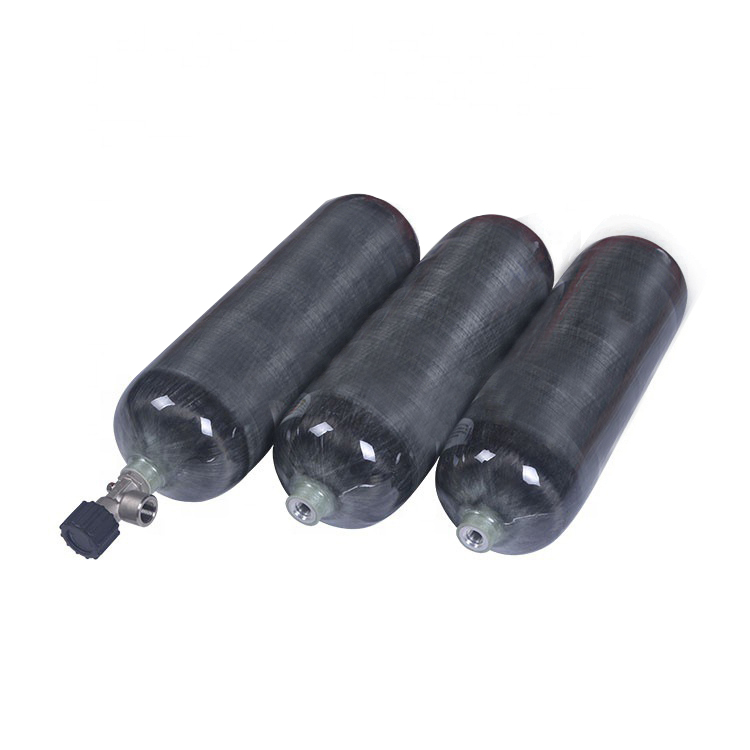

Picture of carbon fiber composite air cylinder:
