5L cylinder Self-contained Air Breathing Apparatus
Main application：
DF-RHZK positive pressure fire-fighting air respirator is a new model of self supporting open
respirator, which is widely used in fire-fighting、chemistry industry, fired boat, industry, smelt, mine and transportation. It is a high-performance respiratory protective device designed for fireman and special trained person when trapped in the situation with smoke, pollution, hot vapor and/or hypoxygen to perform the extinguish，rescue and ambulance.
Condition：
a. The atmosphere is polluted by smoke、poisonous gas or/and hot vapor，or in the hypoxygen situation
b. In the atmosphere of －30℃～＋60℃，at 0～100％ relative humidity and 70kpa～125kpa atmosphere pressure.
Certificate：CCC, CCS, etc.
Standards：Resolution MSC339(91) Amendments to the international code for fire safety systems (FSSCODE).
Specification:
Model: RHZK5/30
Working pressure: 30Mpa
Volume: 5L
Air Deposit: 1500L
Using Time:40-50 (min)
Alarm Pressure: 4-6Mpa
Weight:<12 KG
Packing: 755x460x299mm

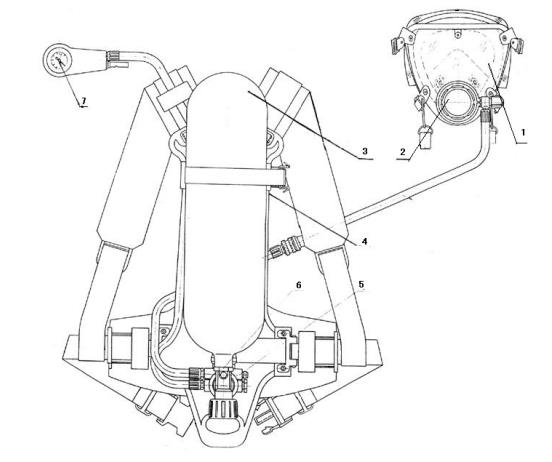

Structure of 5L cylinder self-contained air breathing apparatus:
1-full face mask 2-supply valve 3-cylinder 4- backboard 5-pressure reducer
6- cylinder valve 7-pressure gage alarm

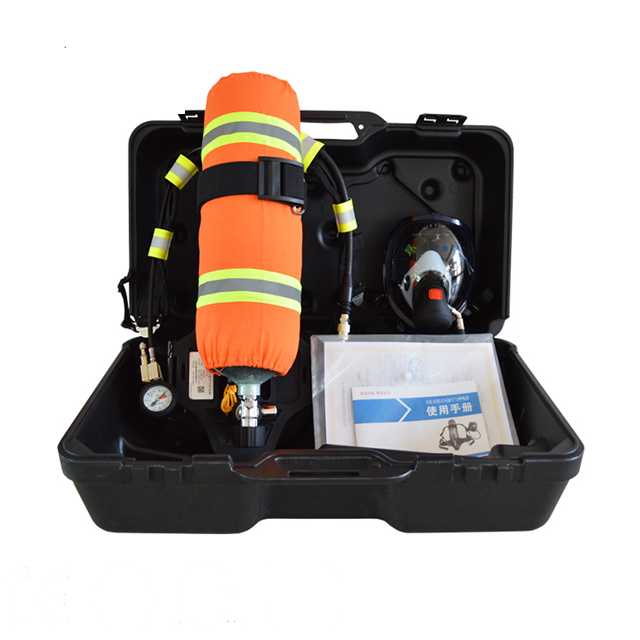

Picture of 5L cylinder self-contained air breathing apparatus:
