FOSU Automatic Fuel Oil Supply Unit
Application
The product is used for fuel oil system including land power station and marine main engine, auxiliary engine burning high-viscosity heavy fuel oil.
The fuel oil supply unit is pressure-style fuel oil supply system. It has high thermal efficiency, compact structure, beautiful appearance, and cutting down the shipbuilding period. The unit is provided with automatic back-flushing of filter, automatic pump alternative, automatic exhaust, PLC auto/hand control, automatic error alarm so on function. It is the essential equipment of vessels driving device making distributed central monitoring.
Main Products

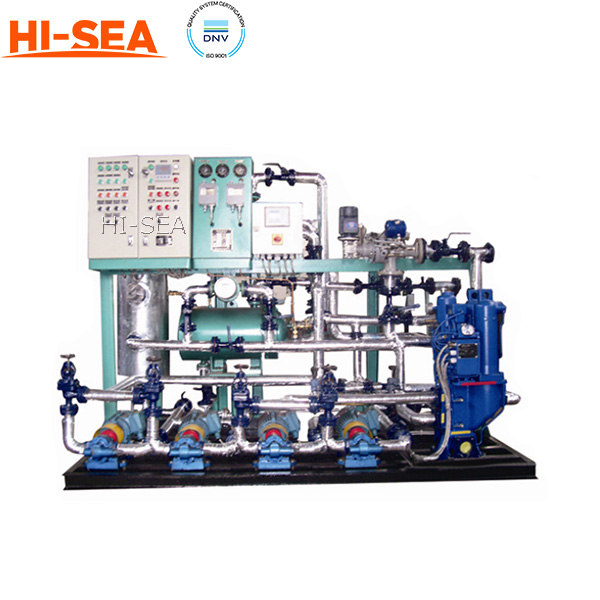

FOSU Automatic Fuel Oil Supply Unit
Main Technical Parameters
Rated fuel viscosity control range
12~15cst
Maximum fuel supply pressure
0.6MPa
Actual oil supply pressure range
≤0.6MPa
Supply tank
80℃
Maximum temperature
≥135℃
Heating medium
Steam/Hot oil+Electric
Power
3φ-380V/50Hz
Outline Dimension
2000*1200*1650mm
Heat transfer oil temperature
220℃
Steam pressure
0.7MPa
Electric heating power
3*6=18KW
Total installed power
≥23KW
Weight
~1200KGS
Type
Flow rate m³/h
Outlet Press.
Outlet Viscosity
Steam Press.
Outline Dimension
Weight Kg
M/E Power 1000KW
L*B*H(mm)
FOSU-0.6/5A
0.6
0.5~1.0MPa
10~12cst
0.7MPa
2300*1200*1800
1780
1~1.5
FOSU-1.1/5A
1.1
2350*1250*1800
2090
1.6~3
FOSU-1.5/5A
1.5
2350*1250*1800
2250
3~3.5
FOSU-1.8/5A
1.8
2350*1250*1800
2380
3.5~4.5
FOSU-2.0/5A
2
2350*1250*1900
2380
4.5~5
FOSU-2.5/5A
2.5
2350*1300*1900
2450
5~6
FOSU-3.0/5A
3
2400*1300*1900
2680
6~7
Principle Description
The automatic fuel oil supply unit is composed of oil supply pumps, circulating pumps, flowmeter, mixing tank, primary fuel filter, self cleaning fuel filter, fuel oil heater, fuel oil viscosity control system, PLC electric controller, instruments, valves, attachments, and so on.
The heavy fuel oil is heated to more than 80℃ in the daily oil tank and that enters the inlet of fuel oil supply unit, by primary fuel filter. Then the fuel oil is supplied to mixing tank by supply pumps. By mixture with main engine return oil, circulating pump has increased the pressure to the heater to reduce the viscosity. The self cleaning filter finishes the filtering. Then the heavy fuel oil heating temperature is controlled by viscosity control system, and the fuel oil fitting for main engine enters the main engine.
