Marine Handling Hose Crane
Application
A marine handling hose crane is a type of crane used for handling hoses on board ships or other marine vessels. These cranes are typically used for loading and unloading cargo or fuel, as well as for transferring liquids or gases between vessels. The main function of a marine handling hose crane is to lift and move hoses from one location to another, such as from a storage area to the ship's deck or from the ship to a dock or another vessel. They are often equipped with specialized hose-handling attachments, such as hose reels or hose baskets, to make it easier to handle and transport hoses.The hose crane is designed for working in hazardous areas and is driven by an explosion-proof motor. The electric starter is located in a safe area and start/stop buttons are mounted on the crane.
Marine handling hose cranes typically have a relatively low lifting capacity compared to other types of cranes, as the loads they handle are generally lighter and more flexible. They are also often mounted on a pedestal or base that allows them to rotate and extend over the side of the ship, providing greater flexibility and reach.
Material
Carbon steel, stainless steel and aluminum.
Advantages and Features
1. Contract structure, high strength.
2. Corrosion resistance, long lifespan.
3. Easy for maintenance, lubrication and inspection.
4. High strength construction, high performance.
5. Can be designed and manufacture to suit customers applications and special operating requirements.
6. Local control or remote control.
7. multi-function, excellent explosion-proof function.
8. Automatic & manual overload protection system.
9. 360° continuous rotation with limits available.
10. Certificate: BV, LR, RINA...

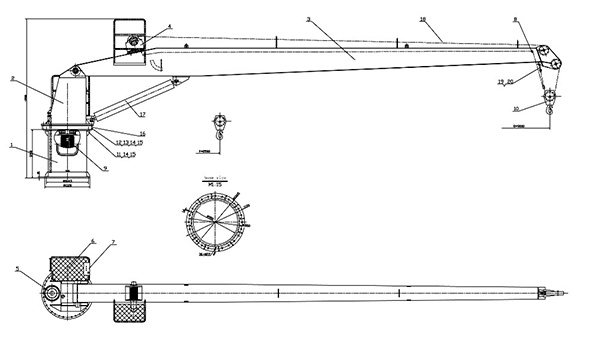

Drawing of Marine Handling Hose Crane
Parameters
| Safety Load | Max Outreach | Lifting Speed | Slewing Speed | Luffing Time | Hoisting Height | Slewing Angle |
| kN | m | m/min | m/min | s | m | ゜ |
| 10 | 6-20 | 15 | 1 | 60 | 30 | 360゜ |
| 15 | 8-22 | 15 | 1 | 60 | 30 | 360゜ |
| 20 | 5-24 | 15 | 1 | 60 | 30 | 360゜ |
| 30 | 8-25 | 15 | 0.9 | 70 | 30 | 360゜ |
| 50 | 12-25 | 15 | 0.75 | 80 | 30 | 360゜ |
| 80 | 12-25 | 15 | 0.75 | 100 | 40 | 360゜ |
| 100 | 12-25 | 15 | 0.75 | 110 | 40 | 360゜ |
|
Above specifications only for reference, We can supply various marine cranes according to your requirements. |
||||||
