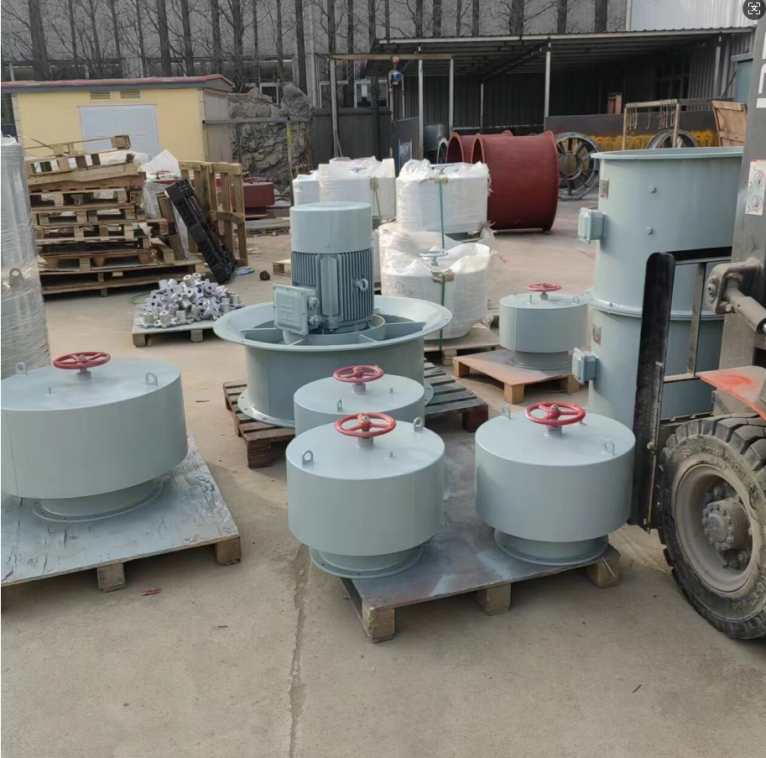

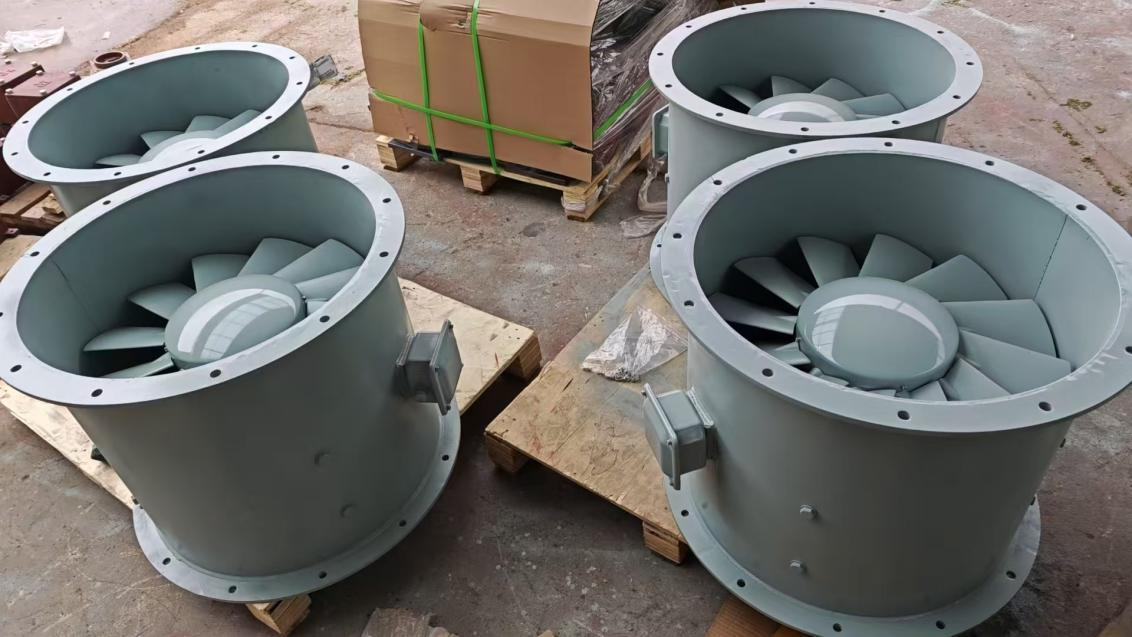

HI-SEA MARINE successfully delivered 10set Marine Axial Flow Fan & 10 set Mushroom Ventilator to the Indonesia. A marine axial flow fan is a type of fan specifically designed for use in marine environments, such as on ships, boats, and offshore platforms. These fans are engineered to move air or gases in a direction parallel to the fan's axis of rotation
The main parameters are as follows:
|
Marine Axial Flow Fan |
Mushroom Ventilator |
|
Model: JCZ-60A Capacity: 12000m³/h Total Pressure: 240Pa Static Pressure: 150Pa Power: 2.2KW Speed: 1460r/min Voltage: 380V/50Hz Fan inner diameter: 600mm Hole spacing/PCD: 660mm Outer diameter: 695mm Height: 550mm With CCS Certificate |
Type: FT-C600 Size: DN600 (Without CCS certificate)
|
|
Model: JCZ-40B Capacity: 4000m³/h Total Pressure: 490Pa Static Pressure: 440Pa Power: 1.1KW Speed: 2920r/min Voltage: 220V/1PH/50HZ Fan inner diameter: 400mm Hole spacing/PCD: 445mm Outer diameter: 475mm Height: 450mm With CCS Certificate |
Type: FT-C400 Size: DN400 (Without CCS certificate)
|
Before start production, HI-SEA MARINE sent the drawings to clients for confirmation. After finished the whistle production, the quality department and technical department carried out all kind of tests. After that the CCS surveyor also carried out all tests. All the test of the Whistle meet the expected design standards and the rules of CCS.

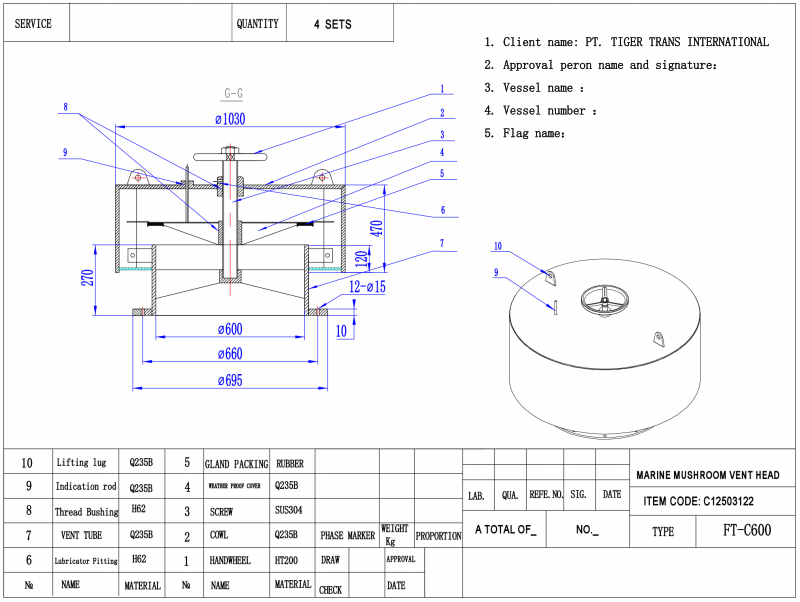

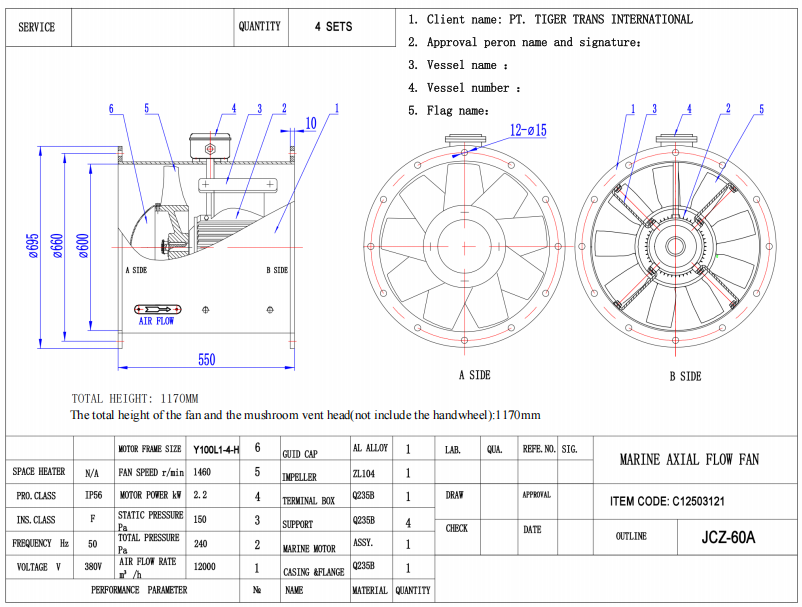

The drawing(JCZ-60A & FT-C600) are as follows:
Marine Fan: An electric, powered fan built tough for boats, used for forced ventilation (intake or exhaust). Mushroom Ventilator: A passive, wind-driven exhaust vent (recognizable by its dome shape) installed on decks/cabin tops for continuous background ventilation of critical spaces. Together: They are fundamental, complementary components of a safe and comfortable marine ventilation system. Mushroom vents provide constant "breathing," while marine fans offer powerful "gulps" of air when needed.
As a professional supplier of marine equipment and dredger components, HI-SEA MARINE have 15 years of experience. All of our work meets ISO 9001:2015, and excellent service and excellent quality have been recognized by many clients.
